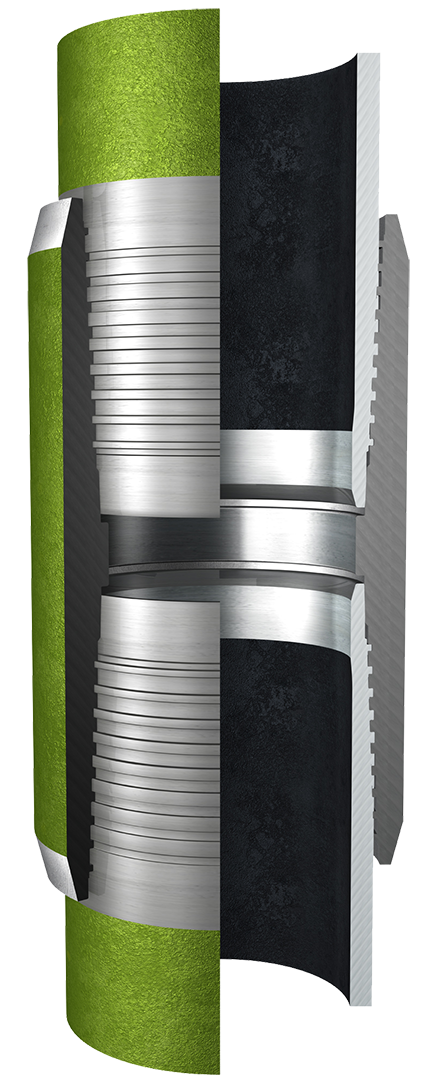

Wedge 563®
The original all-round TenarisHydril Wedge™ connection providing high torque performance and robustness. Supported by over 30 years of extensive field experience and validation through historical testing protocols.
Wedge 563®
Easy make-up
The confirmation band is roller-stenciled, well visible. A rugged, coarse pitch thread and steep taper for deep stabbing makes the rest.
Performing Wedge™ thread
Low TPI profile for fast installation, while simultaneous engagement of the double-hooked dovetail thread develops high torque capability.
Gas tight with optionals
100% internal pressure rated metal seal maintains gas sealability capability under high axial loads. Optional recess-free streamlined ID configuration.
All-around excellence of the original Wedge
The high performance and reliability of the Wedge 563® design is field-proven and backed by more than 25 years of extensive field experience and customer testing, becoming a standard in many worldwide operations. The Wedge thread design creates the largest possible contact surface area at make-up to provide superior compression and several times the torque strength of most competing technologies. Bending and compression capabilities make it recommendable for demanding extended reach well applications.
Features
- Sizes 2 ⅜" - 13 5/8"
- 100% ratings in tension and compression
- 100% collapse-rated thread seal
- Recess Free Bore (RFB) option to maintain flow stream continuity
- Available with Corrosion Barrier (CB®) option and TenCoat™ proprietary ID coating
- Interchangeable with Wedge 533®
