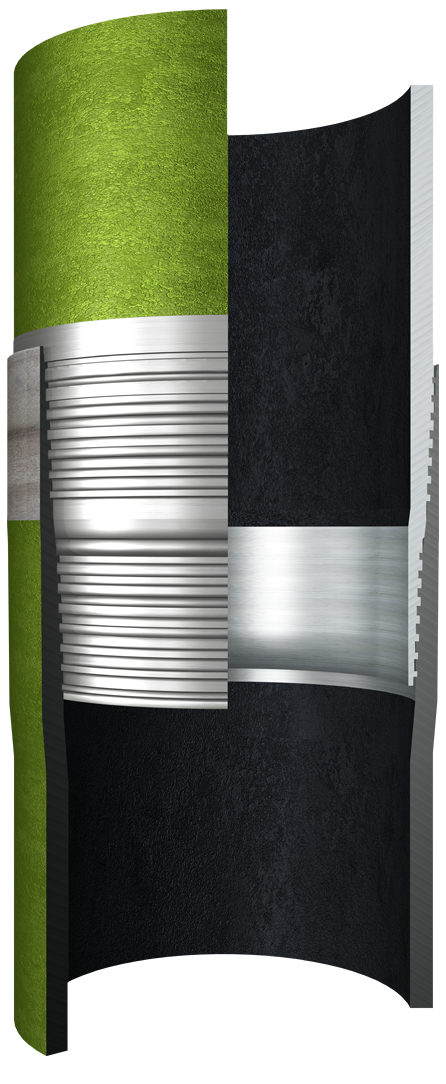

Integral, semi-flush connection designed for unconventional slim wells, featuring outstanding internal and external sealability with the best tensile efficiency under combined loads. The advanced generation of TenarisHydril Wedge™ technology guarantees trouble-free makeup and exceptional torque retention.
For smoother installation made easy with the Wedge thread, quicker thanks to roller-stenciled make-up band. Thread vanishing in the pin for optimum tensile efficiency.
Exceptional strength by the simultaneous engagement of opposing flanks. The locked-in metal-to-metal seal maintains gas sealing capability under high loads.
The steep tapered, two-step Wedge design vanishing thread allows this semi-flush to approach the performance of coupled connections.
Wedge 625® has tapped into the field-proven history of the Wedge thread design as an enhanced solution for high pressure horizontal and deep wells where a semi-flush is needed to facilitate well construction and improve production flow, while guaranteeing efficiency and reliability. Design, sealability, overtorque and fatigue life of the connection have been successfully validated through FEA and Full Scale Testing, thermal cycling and extensive fatigue cycling testing, landing the basis of success of this connection counting on a successful field history in challenging operations worldwide.
We offer a wide array of expert services to support our customers in well design, construction, completion and workover operations. Our service offer covers everything from string design and material selection to running assistance.
TenarisHydril Wedge™ Series connections provide exceptional torque performance and are recognized as the most robust and fastest running connections in the market.
