The most robust and efficient integral semi-flush TenarisHydril Wedge connection on the market, validated with the largest API 5C5 CAL IV service envelope. Designed with Dopeless® technology to perform in the most severe deep water and high-pressure applications.
Clearance OD 1.5 – 2% of specified nominal pipe body OD, with 100% external pressure seal for added reliability.
Torque capability and compression efficiency developed through the simultaneous engagement of opposing flanks, with no drift restrictions after overtorque.
100% internal pressure rated under high axial loads. A patented seal-saver protects it from handling damage and acts as a stiffener.

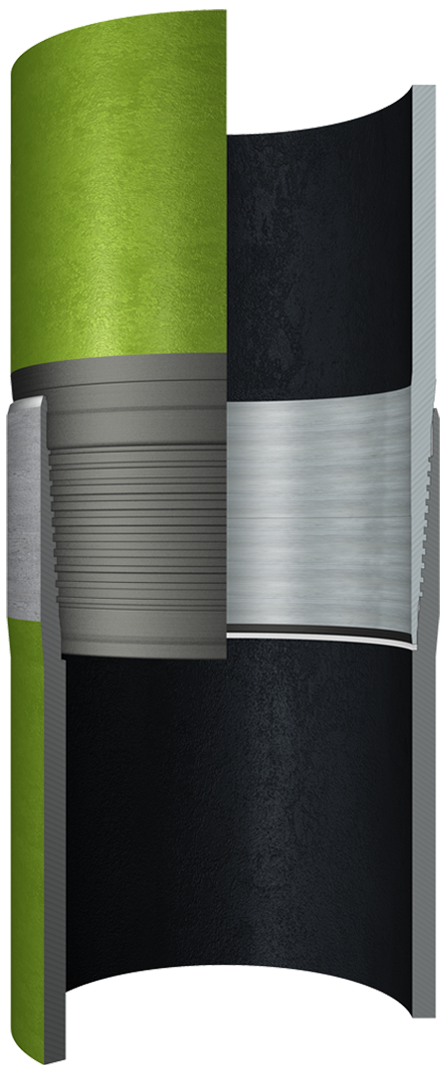

TenarisHydril Wedge 623® connection was developed to comply with recent changes in requirements for deepwater operations. It offers all the advantages of the TenarisHydril Wedge technology, with an additional external metal-to-metal seal. Its unmatched compression ratings (70-75% efficiency) in an integral connection make it suitable for the most severe deepwater and high pressure applications. The connection comes with our Dopeless® technology, which enhances its performance and reliability and provides additional operational, well productivity and HSE benefits.
With Dopeless® technology, connections are supplied RunReady™ and there is no need for the application of running or storage compounds, simplifying handling and yard operations.
TenarisHydril Wedge™ Series connections provide exceptional torque performance and are recognized as the most robust and fastest running connections in the market.
