Performing TenarisHydril Wedge™ semi-flush connection, its internal geometry is enhanced for optimum wear resistance. Designed with Dopeless® technology and validated with the largest API 5C5 CAL IV service envelope in the market, aimed to withstand the most severe deep water, high-pressure and deviated well applications.
Outer diameter OD 2-4% of specified nominal pipe body OD, with 100% external pressure seal for added reliability, for applications where ID Tool Joint wear is an issue.
Torque capability and compression efficiency developed through the simultaneous engagement of opposing flanks, and fostered by Dopeless®. No drift restrictions after overtorque.
100% internal pressure rated under high axial loads. A patented seal-saver protects it from handling damage and acts as a stiffener.

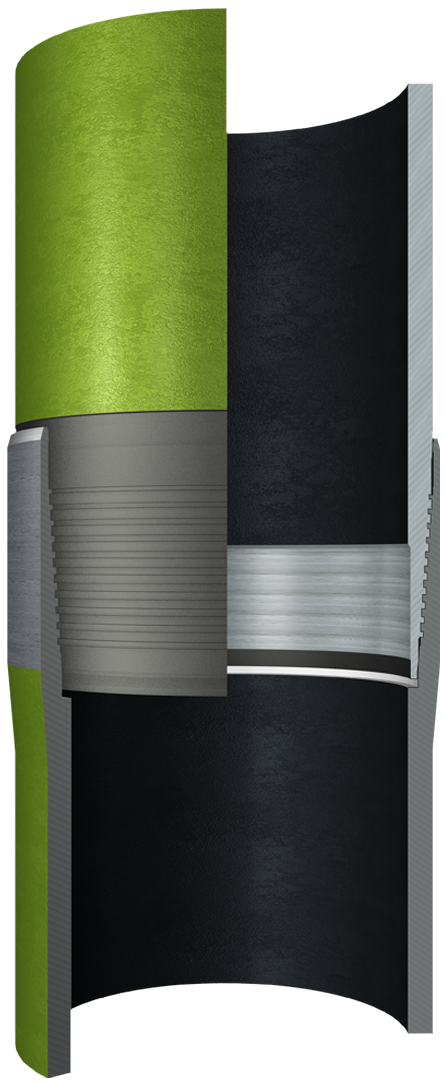

TenarisHydril Wedge 624® premier technology is developed utilizing numerical simulations of wear on ID casing, whose resistance is typically needed in the most severe deepwater and high pressure applications. It maintains the outstanding performance of the Wedge™ Series 600, unmatched compression ratings in an integral connection, and sealability according to API RP 5C5 CAL IV protocol, with testing on both worn and non-worn casing. The connection is designed with our Dopeless® technology, which enhances its performance and reliability and provides additional operational, well productivity and HSE benefits.
With Dopeless® technology, connections are supplied RunReady™ and there is no need for the application of running or storage compounds, simplifying handling and yard operations.
TenarisHydril Wedge™ Series connections provide exceptional torque performance and are recognized as the most robust and fastest running connections in the market.
